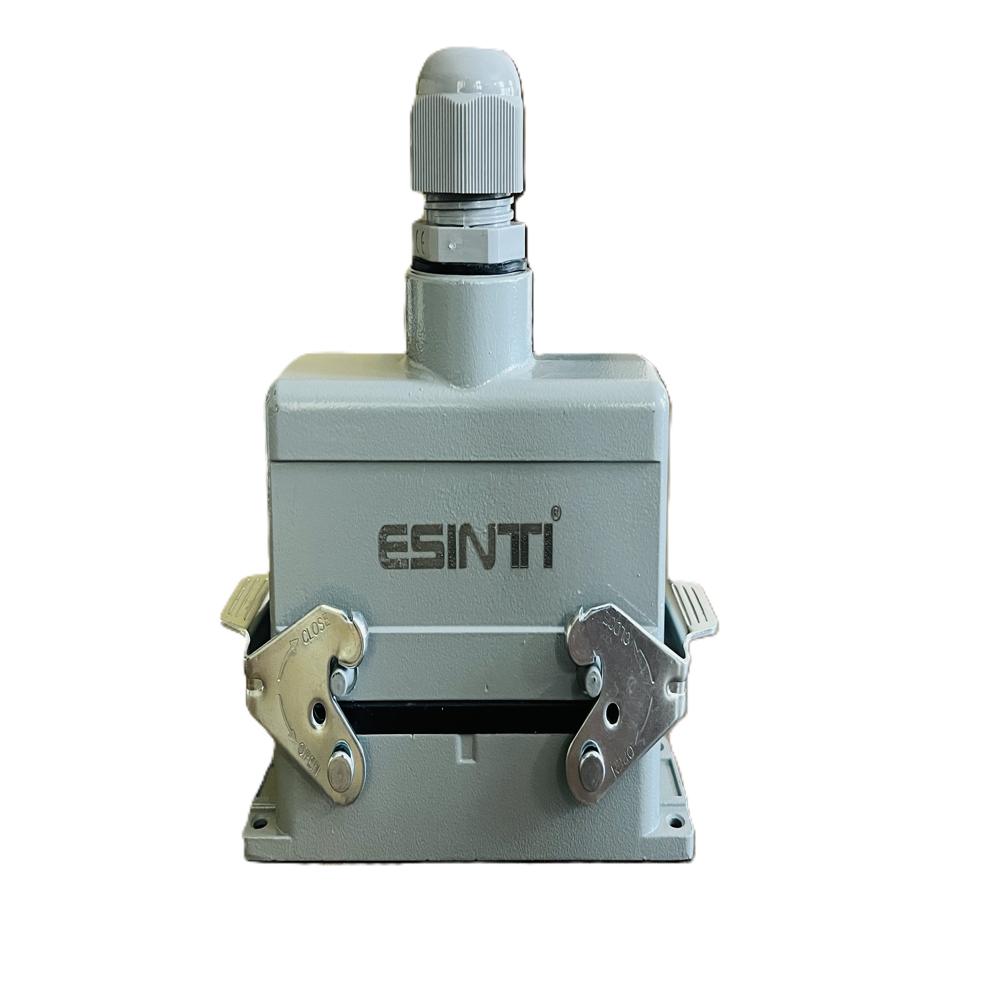

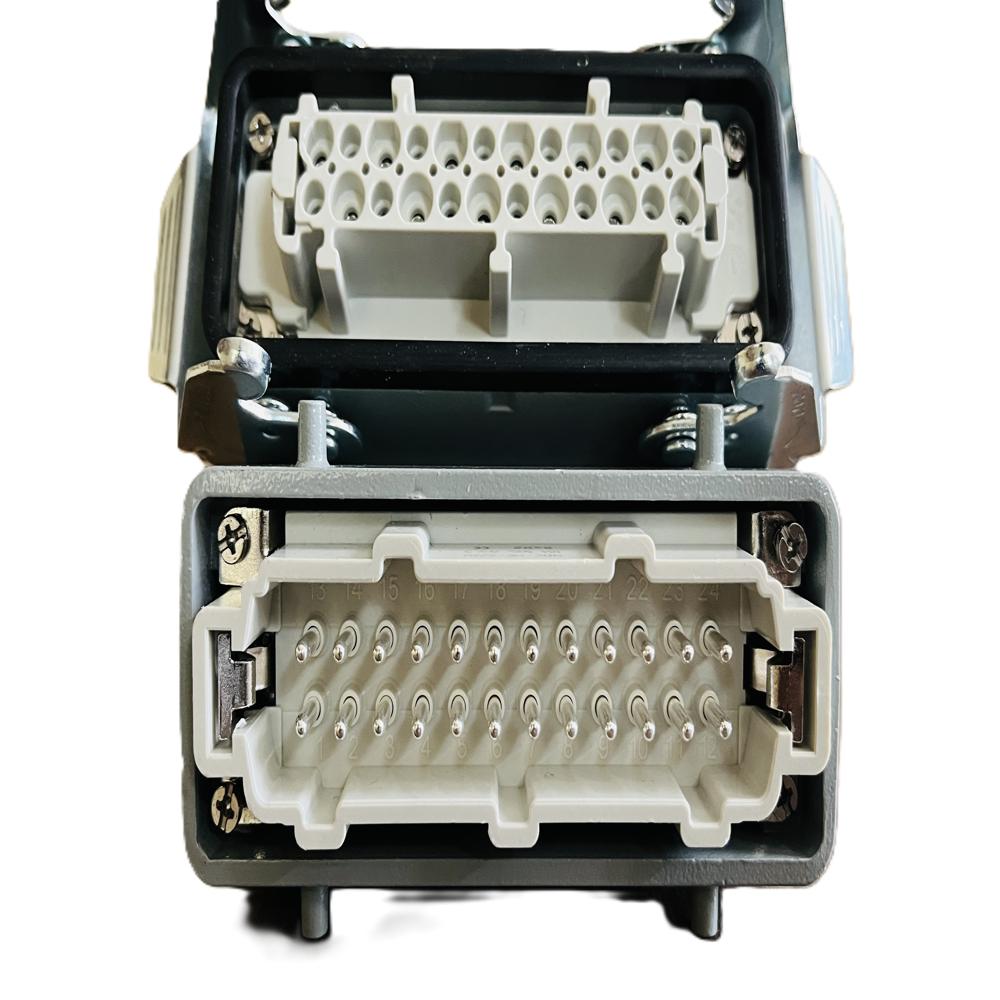

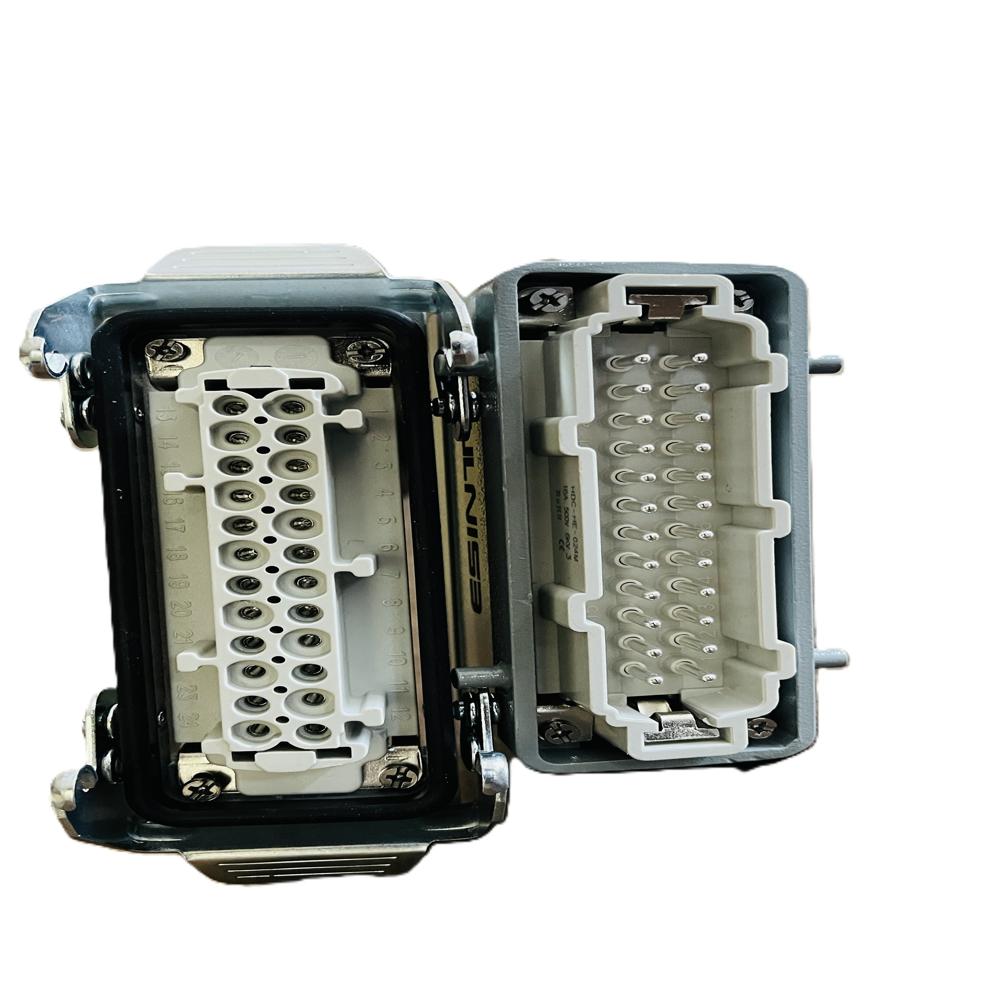

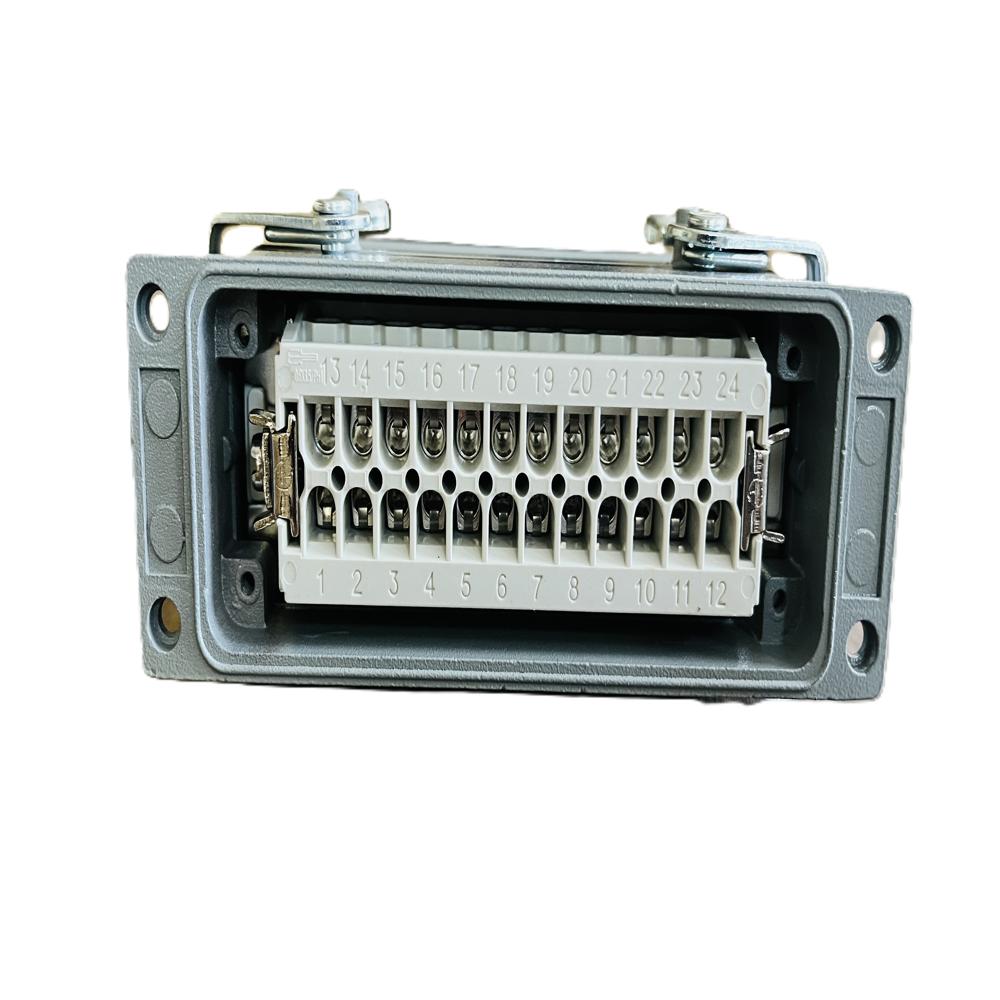

24 Pin Heavy Duty Connector Bottom Open (Top Mount)

Name: 24 Pin Heavy Duty Connector Bottom Open (Top Mount)
Brand: ESINTI PRIVATE LIMITED
Price: 1100.0 INR
Availability: InStock

Price 1100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Perch

24 Pin Heavy Duty Connector Bottom Open (Top Mount) Specification

Surface Finish
SMOOTH

Shape
RECTANGULAR

Product Type
HEAVY DUTY CONNECTOR

Protection Level
IP65

Rated Voltage
500 Volt (V)

Dimension (L*W*H)
14*10*4.5 Centimeter (cm)

Weight
300 Grams (g)

Rated Current
16 Ampere (amp)

24 Pin Heavy Duty Connector Bottom Open (Top Mount) Trade Information

Minimum Order Quantity
1 Perch

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Perches Per Week

Delivery Time
2 Days

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India

About 24 Pin Heavy Duty Connector Bottom Open (Top Mount)

The 24 Pin Heavy Duty Connector Bottom Open Top Mount 24-02 is a reliable and high-performance industrial connector designed for demanding electrical and automation applications. Engineered for durability and efficiency, this connector provides secure multi-pin connections for complex machinery and control panels.

Featuring a bottom open cable entry, it allows neat and efficient cable routing, making it ideal for structured wiring systems. The top mount housing design ensures easy installation on panels, machines, and enclosures, saving time during setup and maintenance.

Built using premium-grade insulating material and robust metal locking clips, this heavy duty connector ensures long-lasting performance even in harsh industrial environments. Its strong locking system prevents accidental disconnection due to vibration, making it perfect for continuous operation machinery.

This connector is widely used in industrial automation, power distribution, control panels, machinery connections, and electrical equipment, ensuring safe and stable electrical connectivity.

Applications

Industrial Automation Systems
Electrical Control Panels
Heavy Machinery Wiring
Power Distribution Units
Packaging Machines
Textile & Printing Machines

Technical Specifications

Number of Pins: 24 Pin
Model: 24-02
Mounting Type: Top Mount
Cable Entry: Bottom Open
Material: Thermoplastic Housing + Metal Lock
Connection Type: Male Female Plug & Socket
Usage: Industrial Electrical Connection

Optimal Performance in Demanding Conditions

This heavy-duty connector is engineered to thrive in harsh industrial environments. Its IP65 rating offers excellent resistance against water and dust, while the robust construction and top-mount design facilitate secure installation. The smooth finish not only enhances durability but also eases maintenance, making it a dependable choice for continuous operations.

Precise Engineering and Convenient Handling

Measuring 14 x 10 x 4.5 cm and weighing 300 grams, the connector is compact yet offers 24 pins for versatile wiring setups. Its rectangular shape promotes efficient space utilization while ensuring a snug and reliable fit during assembly. With a rated voltage of 500V and current of 16A, it supports a wide range of power and control applications.

FAQ's of 24 Pin Heavy Duty Connector Bottom Open (Top Mount):

Q: How is the 24 Pin Heavy Duty Connector installed in an electrical setup?

A: This connector is designed for top mounting and features a bottom-open configuration, making it easy to integrate into panels and machinery by securing it from the top and facilitating straightforward wiring access.

Q: What makes this connector suitable for industrial applications?

A: The connector's sturdy build, IP65 protection level, and ability to handle up to 500V and 16A ensure that it can perform reliably in electrically demanding and potentially harsh environments like factories and production lines.

Q: When should I use a heavy-duty connector with a bottom open, top mount design?

A: Opt for this type of connector when you need robust connections in machinery or panels where top-side installation and easy access to the bottom for wiring are required, especially in industrial or manufacturing settings.

Q: Where can I source this 24 Pin Heavy Duty Connector in India?

A: This connector is available from reputable electrical components manufacturers and suppliers throughout India, often through industrial supply chains and specialized distributors.

Q: What is the manufacturing process for this type of connector?

A: These connectors are typically produced using high-grade materials and precision molding techniques, followed by finishing processes to ensure a smooth surface and rigorous testing to guarantee IP65 protection and electrical safety.

Q: How is this connector typically used in control panels or machinery?

A: It serves to securely connect multiple power and control circuits within a single, compact housing, streamlining wiring layouts and facilitating maintenance or upgrades in control panels and equipment.

Q: What are the main benefits of choosing this connector for your project?

A: Key benefits include enhanced durability, high electrical capacity, strong environmental protection, and user-friendly installation-making it a reliable and long-lasting choice for varied industrial applications.
