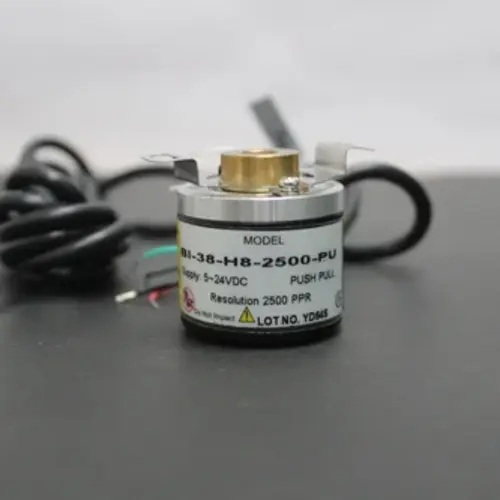

Absolute Rotary Encoder BI-38-H8-2500-PU

Name: Absolute Rotary Encoder BI-38-H8-2500-PU
Brand: ESINTI PRIVATE LIMITED
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Absolute Rotary Encoder BI-38-H8-2500-PU Specification

Surface Finish
Smooth

Product Type
Absolute Rotary Encoder BI-38-H8-2500-PU

Output Type
Push-Pull(HTL)

Weight
200 Grams (g)

Warranty
Yes

Phase
Single Phase

Size
38mm

Features
Wide voltage compatibility

Absolute Rotary Encoder BI-38-H8-2500-PU Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Absolute Rotary Encoder BI-38-H8-2500-PU

The BI-38-H8-2500-PU Absolute Rotary Encoder is a compact, high-precision rotary feedback device designed for industrial automation and motion control systems. It delivers accurate position and speed information for CNC machines, robotics, conveyors, and printing equipment.

This encoder provides absolute rotary position reference after system initialization, ensuring consistent and repeatable positioning during machine operation. Featuring a 38 mm compact body, 8 mm solid shaft, and 2500 PPR resolution, it is ideal for applications requiring reliable feedback in limited installation spaces.

The push-pull (HTL) output guarantees strong, noise-resistant signals even in electrically noisy environments. With a wide 524V DC operating voltage, this absolute rotary encoder integrates seamlessly with PLCs, drives, and industrial controllers.

Technical Specifications

Specification	Details
Product Name	Absolute Rotary Encoder BI-38-H8-2500-PU
Encoder Type	Incremental (Absolute Position After Reference)
Body Diameter	38 mm
Shaft Diameter	8 mm
Resolution	2500 PPR
Output Type	Push-Pull (HTL)
Operating Voltage	524V DC
Position Feedback	Absolute after homing
Mounting Type	Shaft Mount
Construction	Industrial-Grade, Compact Design
Application Areas	CNC, Robotics, Conveyors, Printing Machines

Key Features

Accurate absolute rotary position feedback after homing
High-resolution 2500 PPR for precise motion control
Push-pull HTL output for excellent noise immunity
Compact 38 mm body for easy installation
Wide voltage compatibility (524V DC)
Reliable operation in harsh industrial environments

Applications

CNC machines and machining centers
Robotics and automation systems
Conveyor and material handling systems
Printing and packaging machinery
Motion control and industrial drive systems

Product-Specific FAQs

Q1: Is this a true absolute rotary encoder?
This encoder provides absolute position information after system reference or homing. It is not a battery-backed true absolute encoder.

Q2: Why is it called an absolute rotary encoder?
In many industrial systems, incremental encoders are used as absolute rotary position devices after initialization.

Q3: What is the resolution of this encoder?
It has a resolution of 2500 pulses per revolution (PPR).

Q4: What output signal does it use?
It uses a Push-Pull (HTL) output, suitable for long cable lengths and noisy environments.

Q5: Can it be used with PLCs and CNC systems?
Yes, it is fully compatible with PLCs, CNC controllers, and industrial drives.

Versatile Sensing Solution

Designed for accuracy and adaptability, the BI-38-H8-2500-PU encoder suits varied industrial automation tasks. Its wide voltage compatibility simplifies implementation across different setups, while the Push-Pull (HTL) output ensures signal integrity even in noisy environments.

Engineered for Durability and Convenience

This encoder's smooth surface prevents dust accumulation, supporting longer operational life. The compact 38mm size and lightweight 200-gram design make it easy to mount in tight spaces, offering hassle-free integration for OEMs and maintenance teams alike.

FAQ's of Absolute Rotary Encoder BI-38-H8-2500-PU:

Q: How does the Absolute Rotary Encoder BI-38-H8-2500-PU function in automation systems?

A: This encoder translates the angular position of a shaft into an electrical signal, delivering precise position data for automation systems. Its absolute sensing capability ensures accurate feedback even after power cycles, making it ideal for tasks demanding reliability.

Q: What are the main benefits of the Push-Pull (HTL) output type offered by this encoder?

A: The Push-Pull (HTL) output provides robust signal transmission, enabling long cable runs without signal degradation. It is compatible with a variety of control systems, minimizing signal interference and improving overall installation flexibility.

Q: Where can the BI-38-H8-2500-PU encoder be installed?

A: Its compact 38mm size and smooth surface finish allow for easy installation in confined machinery spaces or where cleanliness is critical, such as manufacturing lines, robotic joints, and packaging machines.

Q: What is the recommended process for integrating the encoder into an existing system?

A: Integration is straightforward: mount the encoder using appropriate fixtures, connect power within the wide supported voltage range, and link the Push-Pull (HTL) output to your controller or PLC. Calibration is typically minimal due to the device's absolute encoding capability.

Q: When should users choose an absolute rotary encoder like the BI-38-H8-2500-PU instead of an incremental encoder?

A: Absolute encoders are preferable when position data must be retained during power loss or restart, such as in automated assembly or pick-and-place operations, ensuring no loss of system reference.

Q: What warranty coverage comes with this encoder?

A: The product is supplied with a manufacturer warranty, providing assurance against material and manufacturing defects for peace of mind in demanding applications.
