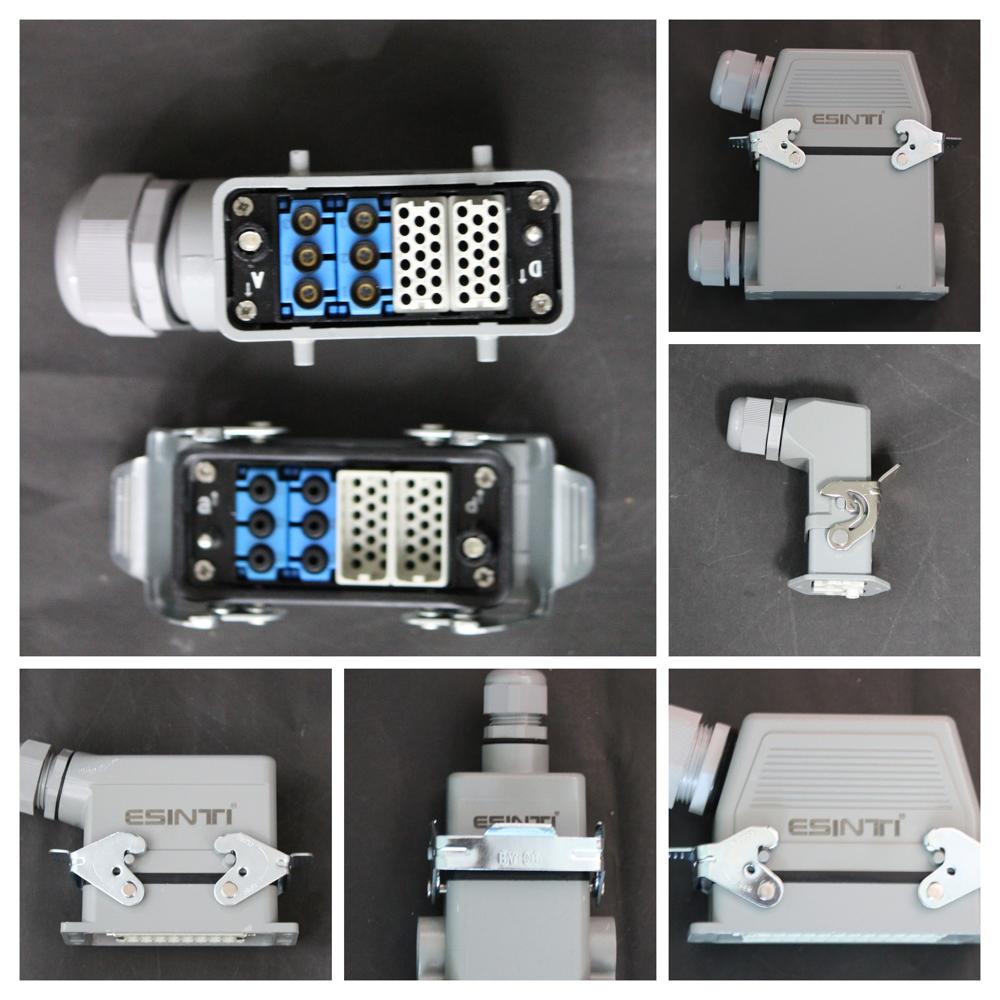

Esinti Heavy Duty Electrical Cable Connector Bottom Open

Name: Esinti Heavy Duty Electrical Cable Connector Bottom Open
Brand: ESINTI PRIVATE LIMITED
Price: 2528.99 INR
Availability: InStock

Price 2528.99 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Esinti Heavy Duty Electrical Cable Connector Bottom Open Specification

Surface Finish
Smooth

Application
Industrial

Warranty
Yes

Color
Grey

Usage & Applications
Electric Fitting

Operating Temperature
As per industry Celsius (oC)

Size
Various

Frequency
50 Hertz (HZ)

Material
Copper Alloy, etc

Esinti Heavy Duty Electrical Cable Connector Bottom Open Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Esinti Heavy Duty Electrical Cable Connector Bottom Open

Technical Specifications=

Parameter	4-Pin Connector	6-Pin Connector	7-Pin Connector	10-Pin Connector	16-Pin Connector	24-Pin Connector	32-Pin Connector	48-Pin Connector
Number of Pins	4 + PE (Protective Earth)	6 + PE	7 + PE	10 + PE	16 + PE	24 (configurable as 2x12 rows)	32 + PE	48 (configurable as 3x16 or 4x12 rows)
Rated Current	2540 A (depending on contact size)	1640 A	2032 A	1625 A	16 A	16 A	1016 A	10 A
Rated Voltage	500690 V AC	500690 V AC	500 V AC	500 V AC	500 V AC	2501000 V (300600 V typical)	250500 V	250500 V
Rated Impulse Voltage	68 kV	68 kV	6 kV	6 kV	6 kV	Up to 6 kV	46 kV	46 kV
Pin Material	Copper Alloy (Silver/Gold Plated)	Copper Alloy (Silver/Gold Plated)	Copper Alloy (Silver Plated)	Copper Alloy (Silver Plated)	Copper (Silver/Gold Plated)	Copper Alloy (Gold/Tin Plated)	Copper Alloy (Tin Plated)	Copper Alloy (Tin/Gold Plated)
Contact Resistance	1 m	1 m	1 m	1 m	1 m	< 10 m	< 10 m	< 10 m
Wiring Form	Screw/Crimp	Screw/Crimp	Screw/Crimp	Screw/Crimp	Screw Connection	Crimp or Solder	Crimp or Screw	Crimp or Solder
Wire Specification	1.010.0 mm	1.06.0 mm	1.06.0 mm	0.754.0 mm	0.54.0 mm	0.52.5 mm	0.52.5 mm	0.252.5 mm
Tightening Torque	0.60.9 Nm	0.50.8 Nm	0.50.8 Nm	0.50.6 Nm	0.5 Nm	0.50.6 Nm	0.40.5 Nm	0.40.5 Nm
Mating Cycles	500	500	500	500	500	5001000	5001000	5001000
Operating Temperature	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C
Shell Material	Die-Cast Aluminum Alloy / Zinc Alloy	Die-Cast Aluminum Alloy / Zinc Alloy	Aluminum Alloy / Thermoplastic	Aluminum Alloy / Thermoplastic	Die-Cast Aluminum Alloy	Nylon, Zinc Alloy, or Thermoplastic	Thermoplastic / Zinc Alloy	Thermoplastic Reinforced / Zinc Alloy
Protection Grade (IP)	IP65/IP67	IP65/IP67	IP65	IP65	IP65 (Dust-tight, water-resistant)	IP67/IP68 (Dust/waterproof)	IP67	IP67/IP68
Sealing Element	NBR (Nitrile Rubber) or Silicone	NBR (Nitrile Rubber) or Silicone	Silicone/NBR	Silicone/NBR	NBR (Nitrile Rubber)	Silicone Rubber Gasket	Silicone Rubber	Silicone Rubber
Locking Mechanism	Double Latch / Screw Lock	Double Latch / Screw Lock	Double Latch / Screw Lock	Double Latch / Screw Lock	Metal Roller, Double Buckle	Twist Lock, Bayonet, or Threaded Coupling	Bayonet / Latch Lock	Bayonet / Threaded / Latch Lock
Salt Spray Resistance	4872 hours	4872 hours	48 hours	48 hours	48 hours	48 hours	48 hours	48 hours
Humidity Resistance	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C
Mounting Style	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable

Superior Copper Alloy Construction

Crafted from a premium copper alloy, the Esinti Heavy Duty Cable Connector provides optimal electrical conductivity and enhanced resistance against wear and corrosion. This robust material selection ensures long-term reliability even under demanding industrial conditions.

Versatile Industrial Application

Ideal for electric fittings in various industrial environments, this connector supports a broad frequency of 50 Hz and is engineered to function efficiently across standard industry temperature ranges. Its flexibility in size makes it suitable for diverse installation demands.

FAQs of Esinti Heavy Duty Electrical Cable Connector Bottom Open:

Q: How do I install the Esinti Heavy Duty Electrical Cable Connector?

A: Begin by ensuring all power sources are switched off. Insert the corresponding cables into the bottom open design of the connector, then secure them with the recommended fastening mechanism. Always follow standard safety procedures for industrial electric fittings.

Q: What is the main benefit of using a copper alloy in this connector?

A: The use of copper alloy enhances electrical conductivity and provides greater durability compared to other materials, minimizing energy loss and ensuring a stable and long-lasting connection.

Q: When should this type of connector be used?

A: This connector is best applied during the installation or upgrade of heavy-duty industrial electrical systems where robust performance and reliability are essential.

Q: Where is the Esinti Heavy Duty Cable Connector manufactured and supplied?

A: It is both manufactured and supplied in India, ensuring accessibility and support from a trusted domestic source.

Q: What is the process for utilizing this connector in electric fitting applications?

A: Select the correct size for your cable, connect the wiring into the bottom open slot, secure it following the recommended tightening protocol, and verify that the installation meets standard industry safety requirements before restoring power.

Q: What warranty is provided with this connector?

A: The product includes a warranty, giving customers assurance regarding quality and manufacturer support should any issues arise within the covered period.
