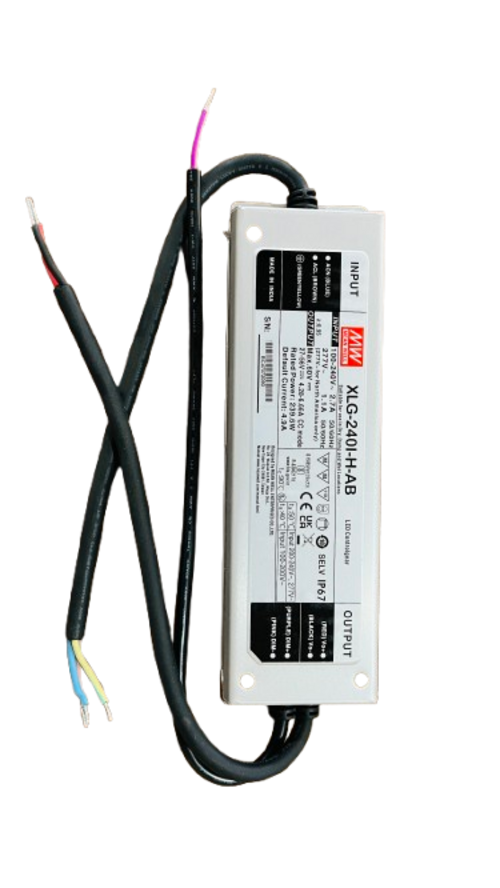

Mean Well XLG-240-H-AB is a 240W constant current LED driver

Price 3498.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Mean Well XLG-240-H-AB is a 240W constant current LED driver Specification

IP Rating
IP67

Power Source
AC

Output
27 56V DC, Constant Current

Features
Waterproof, High Efficiency, Dimmable, Long Life

Usage
Industrial & Outdoor LED Lighting

Power Supply
AC to DC SMPS

Components
Electronic Circuit, Aluminum Housing

Input
100 240VAC, 50/60Hz

Power Rating
240W

Product Type
LED Driver / LED Power Supply

Rated Voltage
27 56V DC Volt (V)

Supply Voltage
100 240VAC Volt (v)

Size
Standard Compact Industrial Design

Function
LED Driver / Power Supply (Constant Current)

Color
Silver / Grey

Weight
Approx. 1 1.2 Kg (select closest option) Kilograms (kg)

Cable Type
3-Core Input + Output Cable

Phase
Single phase

Material
Aluminium

Rated Current
6.6 Ampere (amp)

Conductor
Copper

Current Rating
4.2 6.6 Amp

Frequency
50/60hz Hertz (HZ)

Mean Well XLG-240-H-AB is a 240W constant current LED driver Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
250 Units Per Year

Delivery Time
2 Days

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
Asia

Main Domestic Market
All India

About Mean Well XLG-240-H-AB is a 240W constant current LED driver

The Mean Well XLG-240-H-AB LED Driver is a high-performance, industrial-grade power supply designed for demanding LED lighting applications. With a 240W output capacity, this driver ensures stable and efficient power delivery for LED systems requiring consistent current control.

Built with a rugged IP67 waterproof enclosure, it is ideal for both indoor and outdoor installations, including street lighting, architectural lighting, and industrial environments. The driver supports 3-in-1 dimming (010V, PWM, resistance), offering enhanced flexibility for energy-saving lighting control systems.

Its wide input voltage range (100240VAC) and advanced protection features make it a reliable choice for long-term operation. Whether used in commercial lighting or heavy-duty industrial applications, the XLG series ensures durability, efficiency, and safety.

BULLET POINTS

High Power Output (240W) Reliable constant current LED driver designed for industrial and commercial lighting applications

Wide Input Voltage (100240VAC) Compatible with global power supply systems, ensuring stable performance

IP67 Waterproof Design Fully sealed metal housing suitable for outdoor, dusty, and harsh environments

Dimming Function (3-in-1) Supports 010V, PWM, and resistance dimming for flexible lighting control

High Efficiency & Protection Built-in protections: short circuit, overload, over-voltage, and over-temperature

Long Lifespan & Reliability Ideal for continuous operation in LED street lights, flood lights, and high bay lighting

Technical Specifications Mean Well XLG-240-H-AB

Parameter	Specification
Brand	Mean Well
Model Number	XLG-240-H-AB
Output Power	240 Watts
Input Voltage Range	100 240 VAC
Input Frequency	50 / 60 Hz
Output Voltage Range	27 56 V DC
Output Current Range	4.2 6.6 A
Output Type	Constant Current
Efficiency	Up to 93%
Dimming Options	010V / PWM / Resistance (3-in-1)
Ingress Protection	IP67 (Waterproof & Dustproof)
Cooling Method	Passive Cooling (Fanless)
Working Temperature	-40C to +90C
Housing Material	Metal (Aluminum)
Protection Features	Short Circuit / Overload / Over Voltage / Over Temperature
Power Factor	0.95
Application	LED Street Light, Flood Light, High Bay
Mounting Type	Surface Mount
