Send InquiryPanasonic Servo Motors
Price 30000.0 INR/ Unit
MOQ : 1 Unit
Panasonic Servo Motors Specification
- Usage
- Servo motor applications
- Material
- Steel
- Processing Type
- Precision Casting
- Size
- 80 mm flange
- Gear Tooth Profile
- Other
- Product Type
- AC Servo Motor
- Gearing Arrangement
- Other
- Direction
- Bi-directional rotation
- Weight
- 2.3 Kilograms (kg)
- Output Torque
- 2.39 N m (Rated), 8.36 N m (Peak) N-m
- Rated Power
- 750 Watt (W)
- Input Speed
- 3000 RPM (Rated) RPM
- Output Speed
- Rated: 3000 RPM, Max: 6000 RPM RPM
- Voltage
- 200 Volt (V) Volt (v)
- Efficiency
- High efficiency servo motor
Panasonic Servo Motors Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- TKD NEW DELHI
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 1000 Units Per Year
- Delivery Time
- 1 Days
- Sample Available
- No
- Sample Policy
- Within a certain price range free samples are available
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
Panasonic Servo Motors About
Visit our website to explore our complete range of industrial electrical products: www.myelectrokart.com
The Panasonic MHMF082L1U2M Servo Motor from the MINAS A6 series is a high-performance 750W high inertia AC servo motor designed for precision motion control applications. Operating at 200V, this servo motor delivers high torque, fast response, and stable performance even under heavy load conditions. With IP65 protection, 23-bit high-resolution encoder, and 6000 rpm maximum speed, it is ideal for industrial automation, packaging, robotics, and CNC machinery.
Technical Specifications Table
| Item | Specification |
|---|---|
| Part Number | MHMF082L1U2M |
| Series | MINAS A6 (MHMF Series) |
| Motor Type | High Inertia AC Servo Motor |
| Rated Output | 750 W |
| Rated Voltage | 200 V |
| Power Supply Capacity | 1.8 kVA |
| Rated Current | 3.8 A (rms) |
| Max Current | 18.8 A (0-p) |
| Rated Torque | 2.39 Nm |
| Continuous Stall Torque | 2.86 Nm |
| Peak Torque (Momentary) | 8.36 Nm |
| Rated Speed | 3000 r/min |
| Maximum Speed | 6000 r/min |
| Encoder Type | 23-bit Absolute / Incremental |
| Encoder Resolution | 8,388,608 |
| Encoder Configuration | Lead wire |
| Motor Lead Configuration | Lead wire |
| Protection Class | IP65 (excluding shaft & lead end) |
| Flange Size | 80 mm |
| Rotor Inertia | 1.56 10 kgm |
| Recommended Inertia Ratio | 20 times |
| Shaft Type | Key-way with center tap |
| Holding Brake | No |
| Oil Seal | Yes |
| Mass | 2.3 kg |
| Regenerative Brake | No limit (external resistor optional) |
| External Regenerative Resistor | DV0P4283 |
Permissible Load Specifications
| Condition | Load Type | Value |
|---|---|---|
| During Assembly | Radial Load (P) | 686 N |
| During Assembly | Thrust Load (A) | 294 N |
| During Assembly | Thrust Load (B) | 392 N |
| During Operation | Radial Load (P) | 392 N |
| During Operation | Thrust Load (A/B) | 147 N |
Compatible Servo Drives
| Drive Model | Series | Control Type | Interface | Supply Voltage |
|---|---|---|---|---|
| MCDLN35NE | A6NE | Network (Basic) | RTEX | 200 V |
| MCDLN35SE | A6SE | Position Control | Pulse Train | 200 V |
| MCDLN35SG | A6SG | Communication | RS485 / RS232 | 200 V |
| MCDLT35NF | A6NF | Network (Multi) | RTEX | 200 V |
| MCDLT35SF | A6SF | Multifunction | Analog / Pulse / Modbus | 200 V |
Key Features
-
High inertia design for stable motion control
-
23-bit ultra-high-resolution encoder
-
High peak torque for dynamic acceleration
-
IP65 protection for industrial environments
-
Compact 80 mm flange size
-
Supports high-speed operation up to 6000 rpm
-
Compatible with MINAS A6 servo drives
Applications
-
Industrial automation systems
-
CNC machines
-
Robotics & robotic arms
-
Packaging machinery
-
Printing & converting machines
-
Semiconductor & electronics equipment
Frequently Asked Questions (FAQ)
1. What is the rated power of the MHMF082L1U2M servo motor?
The Panasonic MHMF082L1U2M servo motor has a rated output of 750W, suitable for medium to heavy-duty industrial motion control applications.
2. Which servo drive is compatible with this motor?
This motor is compatible with Panasonic MINAS A6 series servo drives, including A6NE, A6SE, A6SG, A6NF, and A6SF models operating on 200V supply.
3. What type of encoder is used in this servo motor?
It is equipped with a 23-bit high-resolution absolute/incremental rotary encoder providing 8,388,608 pulses, ensuring high positioning accuracy and smooth motion.
4. Is this servo motor suitable for high-speed applications?
Yes. The motor operates at a rated speed of 3000 rpm and supports a maximum speed of 6000 rpm, making it suitable for high-speed automation systems.
5. Does the MHMF082L1U2M servo motor have a holding brake?
No, this model does not include a holding brake. An external braking solution can be used if required by the application.
6. What is the protection rating of this motor?
The servo motor has an IP65 protection class, which protects it against dust and water jets (excluding the shaft rotating portion and lead wire end).
7. What type of shaft is provided?
The motor features a key-way shaft with center tap, ensuring secure coupling with gears, pulleys, or couplings.
8. Is this a high-inertia servo motor?
Yes. The MHMF082L1U2M is a high-inertia servo motor, ideal for applications with large load inertia and frequent acceleration/deceleration cycles.
9. Can the rotary encoder be used in incremental mode?
Yes. The rotary encoder can operate in incremental mode. When used this way, do not connect a battery for absolute encoder operation.
10. What industries commonly use this servo motor?
This servo motor is widely used in CNC machines, robotics, packaging machinery, printing machines, semiconductor equipment, and industrial automation systems.
11. What is the permissible load on the output shaft during operation?
During operation, the permissible load is 392 N radial load and 147 N thrust load (A/B direction), ensuring safe and reliable performance.
12. Is an external regenerative resistor required?
An external regenerative resistor is optional. If required, Part No. DV0P4283 can be used, with no limitation on regenerative brake frequency.
Superior Performance and Precision
Panasonic Servo Motors deliver superior feedback and performance with their industry-leading 23-bit encoder system and up to 6000 RPM output speed. Precision casting and class F insulation ensure durability and reliable operation, making them perfectly suited for high-precision applications in various manufacturing processes.
Robust Construction for Harsh Environments
Built with an industrial-grade metal body and steel components, these servo motors feature a square flange, industrial coated finish, and IP65 rating. This robust construction protects against dust and water, making the motors highly dependable in challenging factory settings and extending operational lifespan.
Versatile Applications and Easy Integration
Designed for seamless integration, Panasonic Servo Motors can be mounted with a flange and utilize wired connections via lead wire. They are suitable for industrial automation, packaging, printing, semiconductor manufacturing, and robotics-offering consistent, energy-efficient operation tailored to your application demands.
FAQ's of Panasonic Servo Motors:
Q: How do Panasonic Servo Motors enhance industrial automation systems?
A: Panasonic Servo Motors provide accurate positioning and high torque, essential for industrial automation systems. With rapid response times and reliable feedback from their 23-bit encoders, these motors excel in maintaining precise motion control, resulting in improved production efficiency and reduced downtime.Q: What is the warranty coverage for these servo motors?
A: Each Panasonic Servo Motor comes with a manufacturer's warranty, which covers defects in materials and workmanship under normal industrial use. The warranty ensures peace of mind by protecting your investment against unexpected issues during the warranty period.Q: When should I select a 750 W, 200 V AC servo motor for my application?
A: Choosing a 750 W, 200 V AC Panasonic Servo Motor is ideal when your application requires high efficiency, precise control, and robust performance, such as in CNC machines, robotics, or packaging equipment. The motor's rated current of 3.8 A and high-speed capability support demanding operational needs.Q: Where are these servo motors best utilized?
A: Panasonic Servo Motors are best suited for industrial environments, including automation systems, robotic arms, printing and converting machines, and semiconductor equipment. Their IP65 rating and robust construction allow them to perform reliably even in harsh and dusty factory conditions.Q: What process should I follow for installing these servo motors?
A: Install Panasonic Servo Motors using flange mounting for secure attachment. Ensure proper electrical wiring for 200 V AC input and verify the system's load and drive selection align with the motor's specifications. Follow manufacturer guidelines for encoder connection and protection measures to optimize performance.Q: How does the Class F insulation and IP65 rating benefit my operations?
A: Class F insulation provides excellent thermal protection, allowing stable operation under continuous industrial loads. The IP65 rating safeguards the motor against dust and water ingress, reducing maintenance needs and extending the service life, especially in challenging manufacturing environments.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in AC Servo Motor & Driver Category
Panasonic Servo Motor
Price 10000.0 INR / Piece
Minimum Order Quantity : 1 Piece
Product Type : AC Servo Motor
Efficiency : High efficiency servo motor
Voltage : 200 Volt (v)
Rated Power : 750W

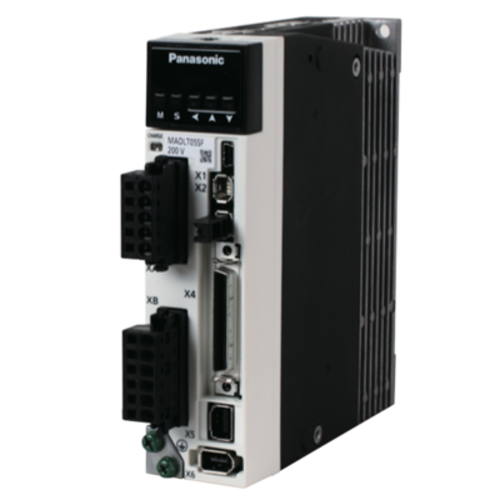

Panasonic Servo Drive
