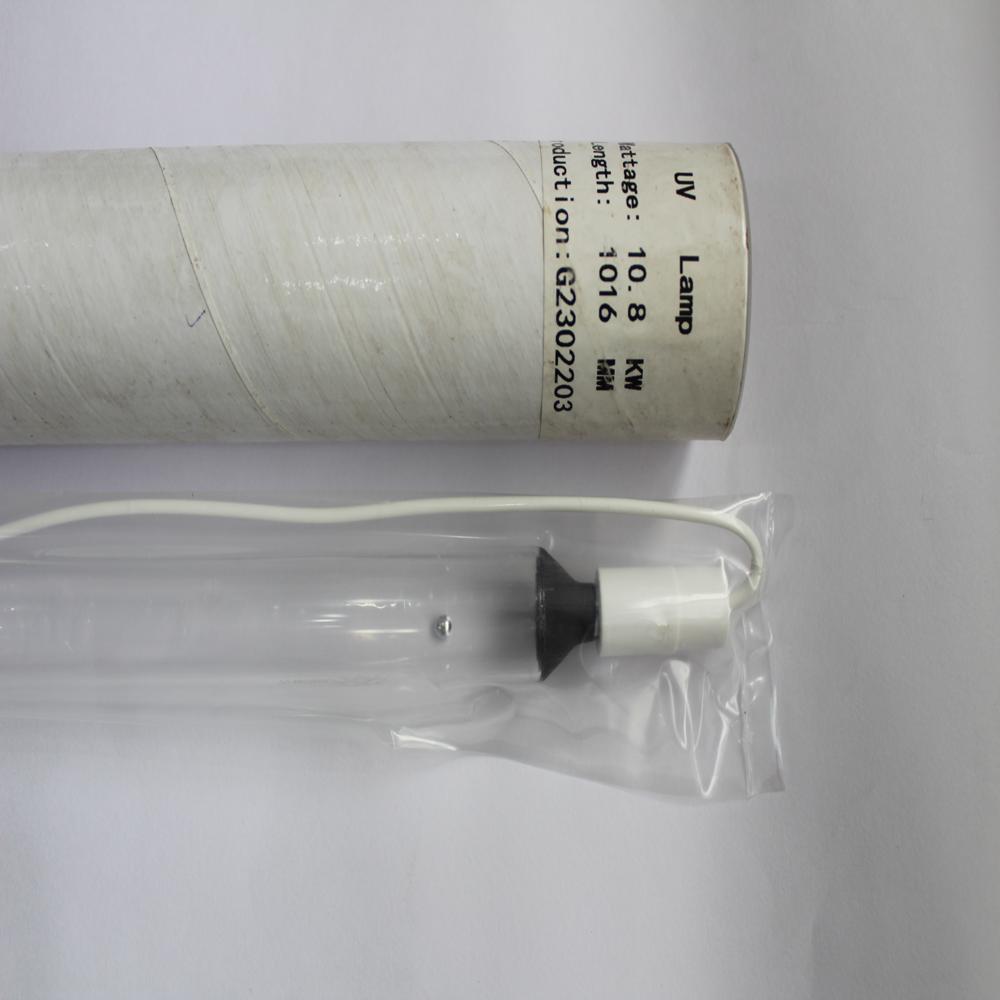

Albatross UV Replacement Lamp 1016 mm (36"/300)

Name: Albatross UV Replacement Lamp 1016 mm (36"/300)
Brand: ESINTI PRIVATE LIMITED
Price: 14905.0 INR
Availability: InStock

Price 14905.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Albatross UV Replacement Lamp 1016 mm (36"/300) Specification

Voltage
1200 Volt (v)

Product Type
UV Replacement Lamp

Weight
Approx. 250 g

Automation Grade
Manual

Warranty
1 Year

Usage & Applications
Wide-format offset

Control Mode
Manual

Model No
1016 mm (36/300)

Dimension (L*W*H)
1016 mm length

Wavelength
365 nm (typical)

Base Type
Single Cap

Lamp Type
Ultraviolet (UV) Replacement Lamp

Glass Material
High purity quartz glass

Diameter
19 mm (approximate)

Operating Life
Up to 1000 hours

Power Consumption
300 W

Compatibility
Suitable for Albatross UV systems and equivalent

Albatross UV Replacement Lamp 1016 mm (36"/300) Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Units Per Year

Delivery Time
7 Days

Main Domestic Market
All India

About Albatross UV Replacement Lamp 1016 mm (36"/300)

This 1016 mm lamp is engineered for wide-format machines, delivering powerful curing and superior adhesion for high-volume production environments.

Technical Specification

Specification	Value
Total Length	1016 mm
Arc Length	914 mm
Diameter	25 mm
End Fitting	B Type
Terminal Type	Pin
Cable Length (L/R)	285 / 285 mm
Voltage	1200 V
Current	9 A
Power	10.8 kW

Features

High power UV curing
Stable output across full width
German electrode quality
Extended lamp lifespan
Robust heat stability

Applications

Wide-format offset
Industrial packaging
Carton printing
High-speed lines
UV varnish coating

Premium UV Lamp Construction

Built from high purity quartz glass, the Albatross UV Replacement Lamp ensures optimal UV transmission and uniform curing. Its rugged single cap base provides secure mounting and easy installation, supporting consistent performance in demanding environments.

Optimized for Offset Printing

This lamp is tailored for wide-format offset printing, delivering a typical wavelength of 365 nm to ensure thorough, even curing of UV-reactive coatings and inks. Its 300 W power output is ideally suited for large-scale, high-speed offset presses.

Consistent Performance & Compatibility

With an operating life of up to 1000 hours and manual control for operational flexibility, the Albatross UV lamp is compatible with Albatross systems and equivalent brands. Its universal fit and robust design make it a versatile solution for the printing industry.

FAQ's of Albatross UV Replacement Lamp 1016 mm (36"/300):

Q: How do I install the Albatross UV Replacement Lamp 1016 mm (36"/300)?

A: To install the lamp, first ensure the power supply is switched off and the unit is cool. Remove the old bulb carefully, insert the single cap base of the new UV lamp securely into the designated socket, and ensure proper alignment before switching the power back on.

Q: What are the primary usage applications for this UV replacement lamp?

A: This lamp is primarily used in wide-format offset printing to cure UV-reactive inks and coatings, but it may be utilized in any compatible UV system requiring a 365 nm wavelength and a matching lamp specification.

Q: When should I replace the Albatross UV lamp?

A: It is advisable to replace the lamp after approximately 1000 hours of operation or if you notice diminished curing performance, to maintain optimal output and avoid downtime.

Q: Where can this replacement lamp be used?

A: The lamp is suitable for Albatross UV systems and equivalent models in India or worldwide, especially in commercial printing environments utilizing manual control mode wide-format presses.

Q: What is the benefit of using high purity quartz glass in this lamp?

A: High purity quartz glass enhances UV transmission, ensures uniform light distribution, and extends lamp longevity by resisting chemical and thermal degradation, which optimizes printing quality and system reliability.

Q: How does the manual control mode benefit the lamp's operation?

A: Manual control mode allows users to directly manage lamp activation and power cycles, offering greater operational flexibility and precise control over curing processes during print runs.

Q: What is the process to claim warranty support for the lamp?

A: To claim warranty support within one year of purchase, contact your supplier or Albatross manufacturer with proof of purchase and lamp model details. They will guide you through troubleshooting and replacement procedures as necessary.
