UV Exposure Lamp 210MM 1KW, 3KW

Name: UV Exposure Lamp 210MM 1KW, 3KW
Brand: ESINTI PRIVATE LIMITED
Price: 2741.0 INR
Availability: InStock

Price 2741.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Perch

UV Exposure Lamp 210MM 1KW, 3KW Specification

Dimension (L*W*H)
210 Millimeter (mm)

Model No
210MM 1KW / 3KW

Automation Grade
Semi-Automatic / Manual

Product Type
UV LAmp

Usage & Applications
Photoengraving, PCB exposure, Printing, UV Curing, Industrial Use

Voltage
220 Volt (v)

Weight
Approx. 700g - 1200g (varies by power rating)

Control Mode
Manual / Automatic

Safety Features
UV Protective Coating; Overheat Protection

Application Suitability
Suitable for both screen and offset printing processes

Cooling Method
Air Cooled

Ignition Voltage
3KV - 5KV

Power Rating
1KW / 3KW

Glass Material
Quartz Glass

Wavelength
365 nm (UV-A)

Intensity Adjustment
Available in select models

Lamp Base
Metal or Ceramic

Lamp Type
Mercury Vapor UV Lamp

Warm-up Time
1-2 mins

Operating Temperature
Up to 45C ambient

Average Life Span
800 - 1200 hours

UV Exposure Lamp 210MM 1KW, 3KW Trade Information

Minimum Order Quantity
1 Perch

Delivery Time
2 Days

About UV Exposure Lamp 210MM 1KW, 3KW

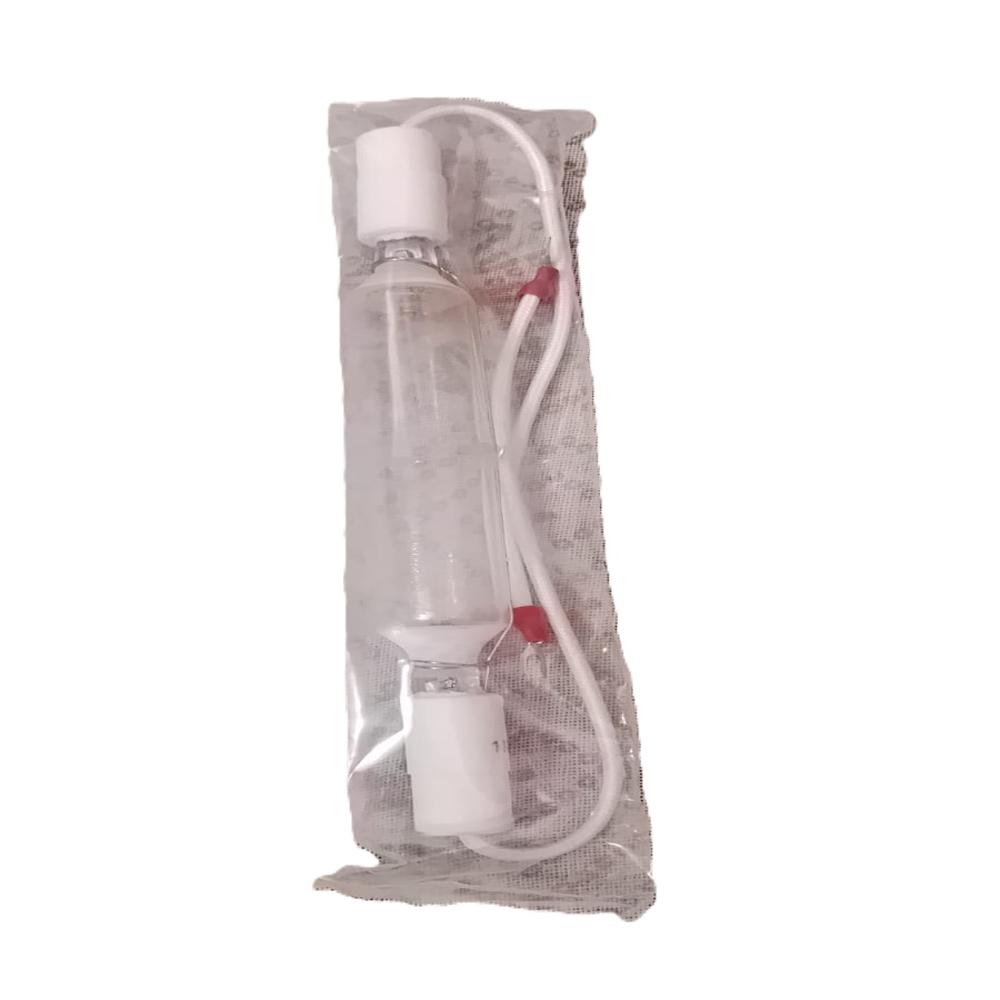

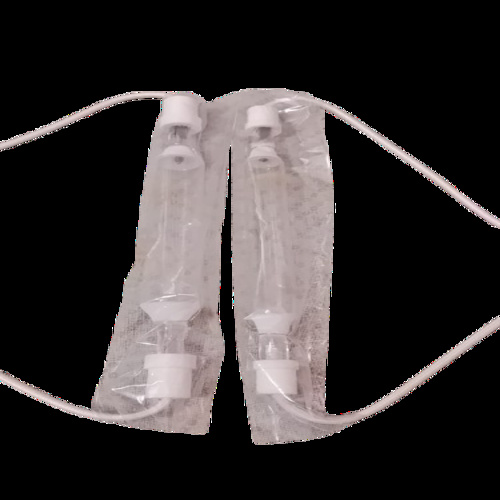

The UV Exposure Lamp 210mm 220V is a high-performance ultraviolet curing lamp designed for industrial exposure and curing applications. Suitable for both 1KW and 3KW power variants, this lamp delivers strong and stable UV output required for PCB exposure, screen printing plate burning, UV ink curing, and adhesive curing processes.

Manufactured using high-quality quartz glass, the lamp ensures maximum ultraviolet light transmission while maintaining excellent resistance to high operating temperatures. The ceramic end caps with insulated wire leads provide secure electrical connectivity and reliable performance in continuous industrial use.

This UV exposure lamp is widely used in screen printing exposure machines, PCB manufacturing units, UV curing systems, and printing equipment. It enables accurate exposure, faster curing time, and consistent results, making it ideal for professional and industrial applications.

Designed to operate on a 220V power supply, the lamp is compatible with a wide range of UV exposure units and curing machines. Its robust construction and stable performance make it a reliable replacement lamp for maintaining productivity and efficiency.

Whether used for photoresist exposure, plate making, UV coating, or adhesive curing, this quartz UV lamp offers high efficiency, durability, and consistent ultraviolet performance for demanding industrial environments.

Technical Specifications UV Exposure Lamp 210mm

Parameter	1KW Variant	3KW Variant
Product Type	UV Exposure Lamp	UV Exposure Lamp
Model Number	UV210-1KW	UV210-3KW
Lamp Length	210 mm	210 mm
Power Consumption	1000 Watts	3000 Watts
Voltage	220V AC	220V AC
Lamp Material	Quartz Glass	Quartz Glass
End Type	Ceramic Ends	Ceramic Ends
Connection Type	Wire Leads	Wire Leads
Item Shape	Tubular	Tubular
Application	PCB Exposure, Screen Printing	PCB Exposure, Screen Printing
Additional Applications	UV Ink Curing, Plate Burning	UV Ink Curing, Plate Burning
Compatibility	UV Exposure Units	UV Exposure Units

High-Performance UV Exposure Solution

Engineered for industrial reliability, the 210MM UV Exposure Lamp combines robust construction with efficient mercury vapor technology, delivering consistent UV-A output at 365 nm. Choose between 1KW and 3KW power ratings to suit your application. Suitable for diverse processes such as PCB manufacturing, photoengraving, and printing, the lamp ensures precise, controlled exposure every time.

Flexible Application and User-Friendly Operation

The lamp offers installation versatility with metal or ceramic base options. Air cooling keeps the operating temperature safe, while automation and manual controls allow integration into various workflows. The lamp's moderate size and weight mean it's easy to handle and compatible with most industrial setups, whether for semi-automatic or manual applications.

FAQ's of UV Exposure Lamp 210MM 1KW, 3KW:

Q: How do I install the UV Exposure Lamp 210MM 1KW / 3KW in my printing or PCB line?

A: The lamp can be easily installed in most screen and offset printing or PCB exposure equipment using its standard 210mm length and compatible metal or ceramic base. Ensure the lamp is mounted securely, connected to a 220V supply, and that the air cooling system is functional to maintain optimal performance and safety.

Q: What is the recommended usage process for achieving optimal UV exposure with this lamp?

A: To achieve precise exposure, allow the lamp to warm up for 1-2 minutes after ignition. Use the manual or automatic control mode to set the required intensity (if applicable), depending on the printing or curing requirements. Always use proper UV safety equipment and follow manufacturer guidelines for exposure times and distances.

Q: When should I replace my UV Exposure Lamp, and how do I know if it is nearing end of life?

A: The typical lifespan is 800 to 1200 hours. Lamp output will gradually decrease as it nears end of life, resulting in longer curing or exposure times. If you notice reduced effectiveness or the lamp exceeds its rated hours, replace with an identical model to maintain process consistency.

Q: Where can the UV Exposure Lamp 210MM 1KW / 3KW be effectively utilized?

A: This lamp is suitable for various industrial settings, particularly in applications like photoengraving, PCB exposure, screen and offset printing, UV curing, and related manufacturing processes. Its versatility supports installation in automation lines requiring either manual or semi-automatic operation.

Q: What safety features are incorporated in this UV lamp model?

A: The lamp is designed with a UV protective coating and overheat protection mechanisms to help safeguard users against UV exposure and prevent equipment damage from excessive heat. Ensure you adhere to all safety recommendations, including using PPE and installing appropriate shielding.

Q: How does the intensity adjustment feature benefit the user?

A: Select models provide intensity adjustment, allowing operators to fine-tune UV output for specific processes. This helps achieve precise exposure, prevents material overexposure, and enhances the lamp's flexibility across different uses within the same facility.
