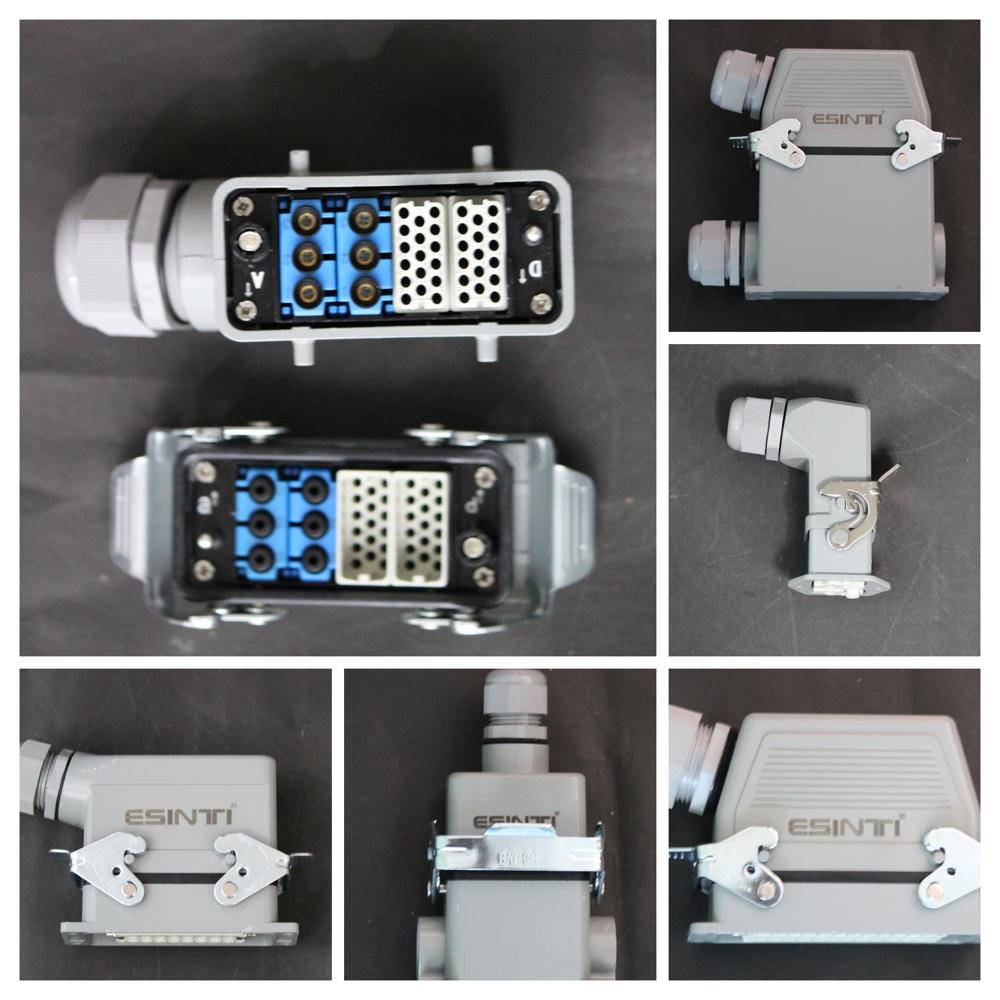

Esinti Heavy-Duty Connector Bottom Close

Name: Esinti Heavy-Duty Connector Bottom Close
Brand: ESINTI PRIVATE LIMITED
Price: 335.87 INR
Availability: InStock

Price 335.87 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Esinti Heavy-Duty Connector Bottom Close Specification

Overheating Protection
YES

Connector Type
Bottom Close

Surface Finish
Smooth

Application
Industrial

Protection Level
IP67

Color
Grey

Warranty
Yes

Usage & Applications
Electric Fitting

Operating Temperature
As per industry Celsius (oC)

Size
4-pin, 4+1 pin, 6-pin, 7-pin, 10-pin, 16-pin, 24-pin, 32-pin and 48-pin connector configurations.

Frequency
50 Hertz (HZ)

Material
Copper Alloy, etc

Esinti Heavy-Duty Connector Bottom Close Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
1 Days

Main Domestic Market
All India

About Esinti Heavy-Duty Connector Bottom Close

Technical Specifications Heavy Duty Connectors

Parameter 4-Pin Connector 6-Pin Connector 7-Pin Connector 10-Pin Connector 16-Pin Connector 24-Pin Connector 32-Pin Connector 48-Pin Connector

Number of Pins 4 + PE (Protective Earth) 6 + PE 7 + PE 10 + PE 16 + PE 24 (configurable as 2x12 rows) 32 + PE 48 (configurable as 3x16 or 4x12 rows)

Rated Current 25-40 A (depending on contact size) 16-40 A 20-32 A 16-25 A 16 A 16 A 10-16 A 10 A

Rated Voltage 500-690 V AC 500-690 V AC 500 V AC 500 V AC 500 V AC 250-1000 V (300-600 V typical) 250-500 V 250-500 V

Rated Impulse Voltage 6-8 kV 6-8 kV 6 kV 6 kV 6 kV Up to 6 kV 4-6 kV 4-6 kV

Pin Material Copper Alloy (Silver/Gold Plated) Copper Alloy (Silver/Gold Plated) Copper Alloy (Silver Plated) Copper Alloy (Silver Plated) Copper (Silver/Gold Plated) Copper Alloy (Gold/Tin Plated) Copper Alloy (Tin Plated) Copper Alloy (Tin/Gold Plated)

Contact Resistance 1 m 1 m 1 m 1 m 1 m < 10 m < 10 m < 10 m

Wiring Form Screw/Crimp Screw/Crimp Screw/Crimp Screw/Crimp Screw Connection Crimp or Solder Crimp or Screw Crimp or Solder

Wire Specification 1.0-10.0 mm 1.0-6.0 mm 1.0-6.0 mm 0.75-4.0 mm 0.5-4.0 mm 0.5-2.5 mm 0.5-2.5 mm 0.25-2.5 mm

Tightening Torque 0.6-0.9 Nm 0.5-0.8 Nm 0.5-0.8 Nm 0.5-0.6 Nm 0.5 Nm 0.5-0.6 Nm 0.4-0.5 Nm 0.4-0.5 Nm

Mating Cycles 500 500 500 500 500 500-1000 500-1000 500-1000

Operating Temperature -40C to +125C -40C to +125C -40C to +125C -40C to +125C -40C to +125C -40C to +125C -40C to +125C -40C to +125C

Shell Material Die-Cast Aluminum Alloy / Zinc Alloy Die-Cast Aluminum Alloy / Zinc Alloy Aluminum Alloy / Thermoplastic Aluminum Alloy / Thermoplastic Die-Cast Aluminum Alloy Nylon, Zinc Alloy, or Thermoplastic Thermoplastic / Zinc Alloy Thermoplastic Reinforced / Zinc Alloy

Protection Grade (IP) IP65/IP67 IP65/IP67 IP65 IP65 IP65 (Dust-tight, water-resistant) IP67/IP68 (Dust/waterproof) IP67 IP67/IP68

Sealing Element NBR (Nitrile Rubber) or Silicone NBR (Nitrile Rubber) or Silicone Silicone/NBR Silicone/NBR NBR (Nitrile Rubber) Silicone Rubber Gasket Silicone Rubber Silicone Rubber

Locking Mechanism Double Latch / Screw Lock Double Latch / Screw Lock Double Latch / Screw Lock Double Latch / Screw Lock Metal Roller, Double Buckle Twist Lock, Bayonet, or Threaded Coupling Bayonet / Latch Lock Bayonet / Threaded / Latch Lock

Salt Spray Resistance 48-72 hours 48-72 hours 48 hours 48 hours 48 hours 48 hours 48 hours 48 hours

Humidity Resistance 90% RH at 40C 90% RH at 40C 90% RH at 40C 90% RH at 40C 90% RH at 40C 90% RH at 40C 90% RH at 40C 90% RH at 40C

Mounting Style Panel Mount/Inline/Cable-to-Cable Panel Mount/Inline/Cable-to-Cable Panel Mount/Inline/Cable-to-Cable Panel Mount/Inline/Cable-to-Cable Panel Mount/Inline/Cable-to-Cable Panel Mount/Inline/Cable-to-Cable Panel Mount/Inline/Cable-to-Cable Panel Mount/Inline/Cable-to-Cable

Features of Heavy Duty Connector

Rugged housing designed for harsh industrial environments
High mechanical strength with excellent vibration and shock resistance
Secure locking mechanism for stable and reliable connections
Supports high current and voltage transmission
Corrosion-resistant metal or high-grade thermoplastic housing
Excellent protection against dust, moisture, and contaminants
Easy installation with screw or crimp terminal options
Long service life with minimal maintenance

Applications of Heavy Duty Connector

Industrial automation and control panels
CNC machines and factory machinery
Power distribution systems
Robotics and motion control equipment
Packaging and printing machines
Material handling and conveyor systems
Renewable energy and power equipment
Railway, automotive, and heavy engineering applications
Outdoor and harsh-environment electrical connections

Reliable Industrial Electric Fitting

Esinti Heavy-Duty Connector Bottom Close is expertly manufactured to serve industrial electric fitting requirements. Its copper alloy construction provides excellent electrical performance, while the smooth surface finish ensures easy installation and maintained functionality. Designed for versatile industrial uses, it supports systems operating at 50 Hz frequency and withstands typical environmental conditions prevalent in factories and plants.

Engineered for Quality and Durability

This connector stands out due to its sturdy build and high-grade materials. The bottom close design offers additional protection and secure electrical connections. With a comprehensive warranty and compliance with industry operating temperatures, it guarantees safe, reliable, and long-term power distribution for your enterprise.

FAQs of Esinti Heavy-Duty Connector Bottom Close:

Q: How is the Esinti Heavy-Duty Connector Bottom Close used in electric fittings?

A: This connector is primarily utilized to establish stable and secure connections within industrial electric fitting systems. Its robust copper alloy structure supports efficient electrical conductivity, making it suitable for heavy-duty power distribution tasks.

Q: What are the benefits of choosing a copper alloy connector for industrial applications?

A: Copper alloy offers excellent electrical conductivity and corrosion resistance, ensuring durability and a consistent power supply in challenging industrial environments. Its resilience minimizes maintenance and replacement needs.

Q: When should I replace or inspect the heavy-duty connector?

A: Regular inspection is recommended during scheduled maintenance or if you notice any signs of wear, corrosion, or inconsistent performance. Replacement is advised if any physical damage or loss of conductivity is observed.

Q: Where is the Esinti Heavy-Duty Connector Bottom Close typically installed?

A: This connector is suitable for installation in factories, manufacturing plants, and other industrial facilities where robust and secure electrical connections are essential for ongoing operations.

Q: What is the process for installing the Esinti Heavy-Duty Connector?

A: Installation involves securely mounting the connector within an electrical panel or fitting, ensuring tight connections with corresponding terminals. Proper handling and adherence to safety protocols are essential during installation.

Q: How does the products warranty benefit the user?

A: The included warranty provides assurance against manufacturing defects and supports maintenance or replacement within the warranty period, thereby offering users added confidence and reduced risk.
