Tresu- Shaft Encoder

Name: Tresu- Shaft Encoder
Brand: ESINTI PRIVATE LIMITED
Price: 4000.0 INR
Availability: InStock

Price 4000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Tresu- Shaft Encoder Specification

Overheating Protection
NO

Shape
Cylindrical, compact round body design.

Surface Finish
Coated metal

IP Rating
IP65

Feature
Good Quality

Product Type
Shaft Encoder

Protection Level
IP54

Weight
200 Grams (g)

Warranty
Yes

Phase
Single Phase

Frequency
50-60 Hertz (HZ)

About Tresu- Shaft Encoder

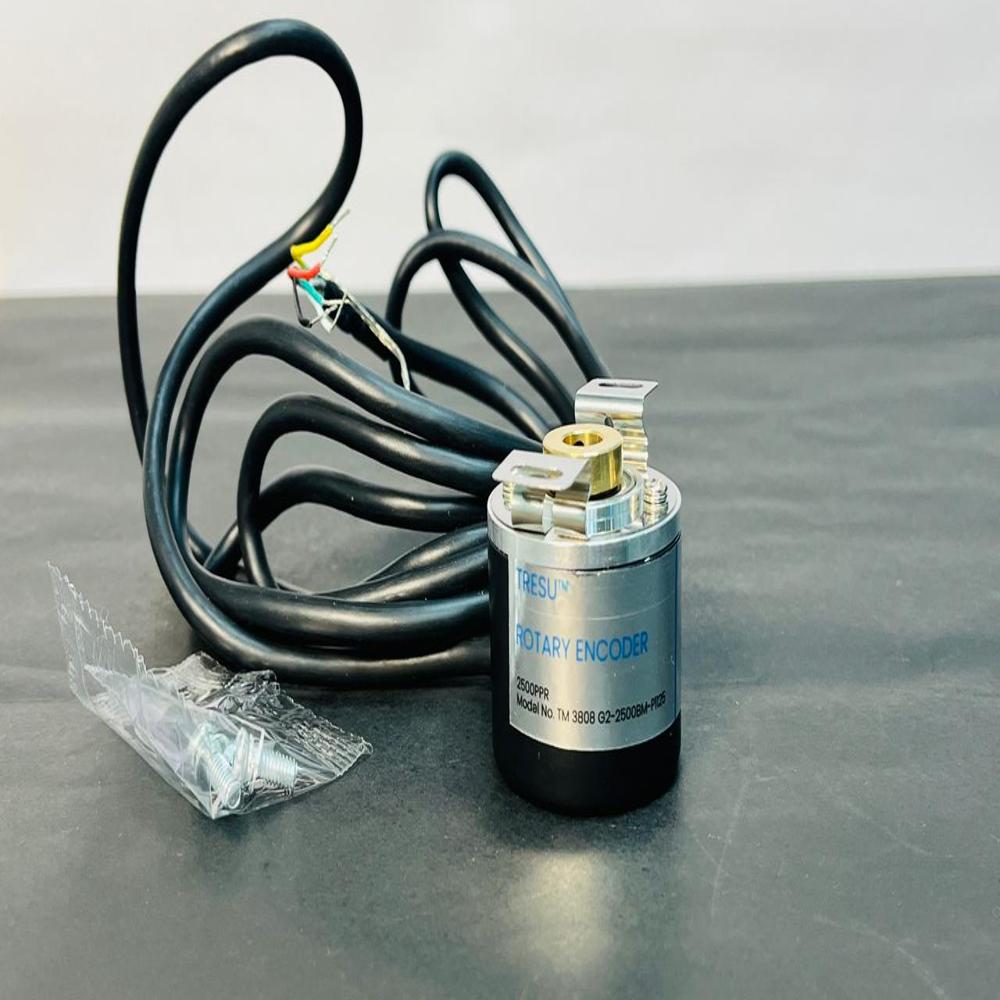

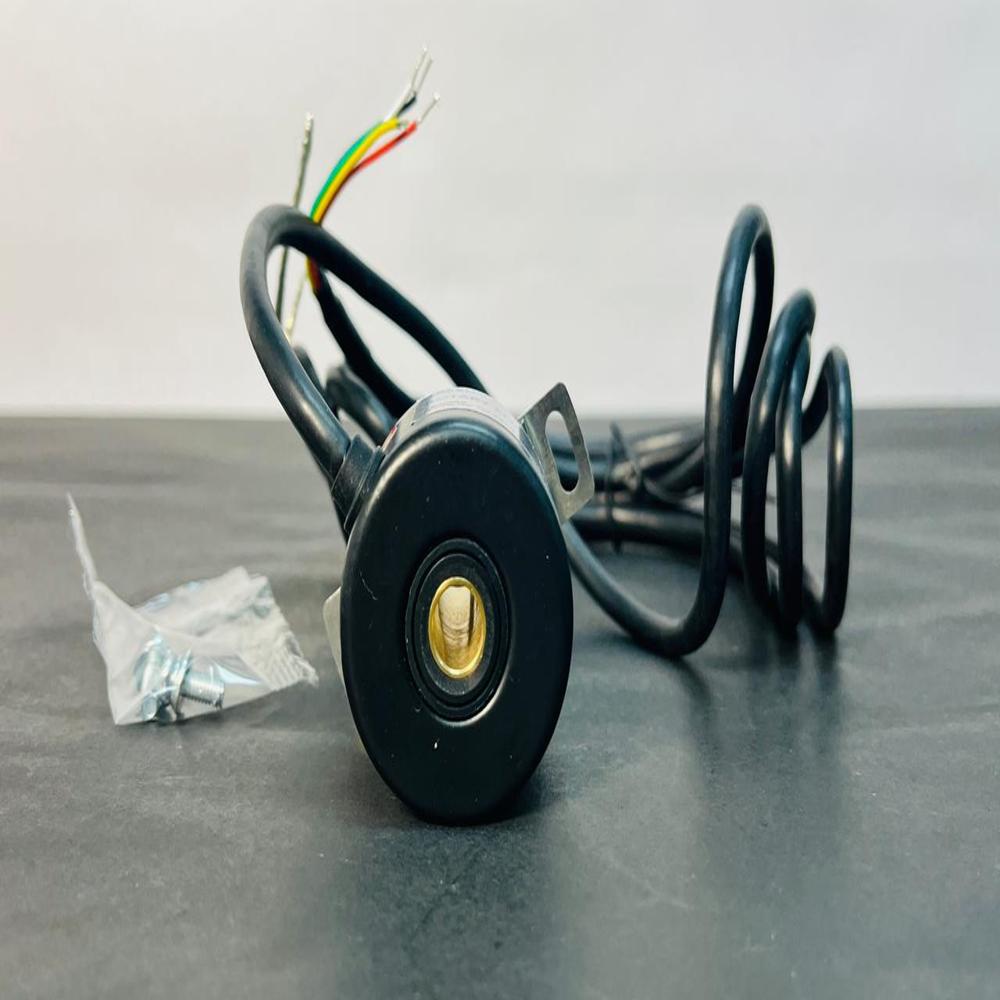

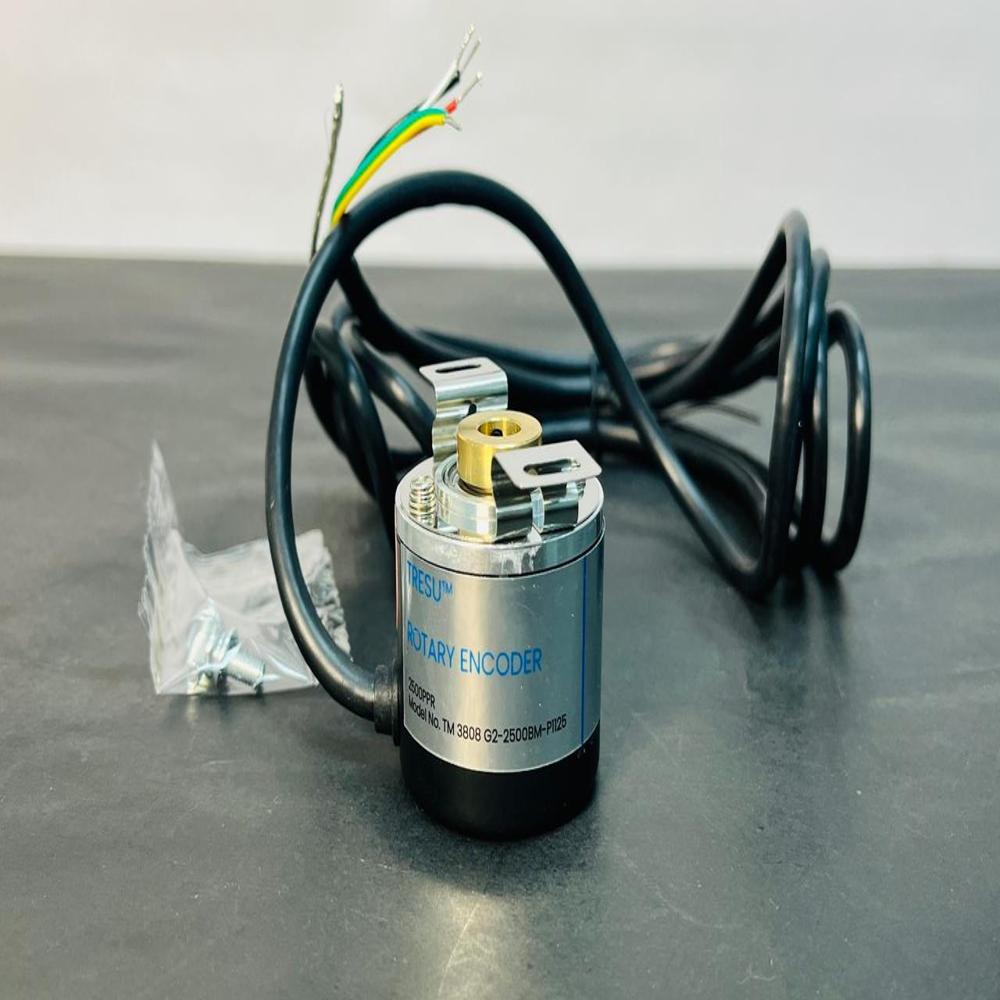

Tresu Shaft Encoder TM 3808 Series

The Tresu Shaft Encoder (TM 3808 Series) is a compact and high-precision rotary feedback device designed to deliver accurate speed and position measurement in industrial automation systems. Built with a 38 mm cylindrical body and an 8 mm solid shaft, this encoder is ideal for installations where space efficiency and reliability are critical.

Engineered for continuous industrial operation, the Tresu Shaft Encoder features a high-resolution incremental output and push-pull (HTL) signal, ensuring stable, noise-resistant performance even in electrically noisy environments. Its rugged aluminum housing and hardened steel shaft provide excellent durability and long service life.

The encoder is widely used in CNC machinery, printing presses, automated conveyors, packaging machines, robotics, and motion control systems, where precise shaft speed and position feedback are essential for accurate machine operation.

Key Features

High-precision shaft-mounted rotary encoder
Accurate speed and position feedback
Compact 38 mm housing for easy integration
Solid 8 mm shaft for secure mechanical coupling
Push-pull (HTL) output for noise immunity
Wide operating voltage range (524V DC)
Rugged industrial-grade construction
Suitable for continuous and high-speed operation

Applications

CNC machines and machine tools
Printing and packaging machinery
Conveyor and material handling systems
Robotics and industrial automation
Motion control and speed monitoring
Textile and labeling machines

Technical Specifications Tresu Shaft Encoder

Specification	Details
Product Name	Tresu Shaft Encoder
Brand	Tresu
Series	TM 3808
Encoder Type	Shaft-Mounted Rotary Encoder
Feedback Type	Incremental
Body Diameter	38 mm
Shaft Diameter	8 mm
Resolution	2500 PPR (Pulses Per Revolution)
Output Type	Push-Pull (HTL)
Operating Voltage	524V DC
Input Type	Solid Shaft (Rotary)
Housing Material	Aluminum
Shaft Material	Hardened Steel

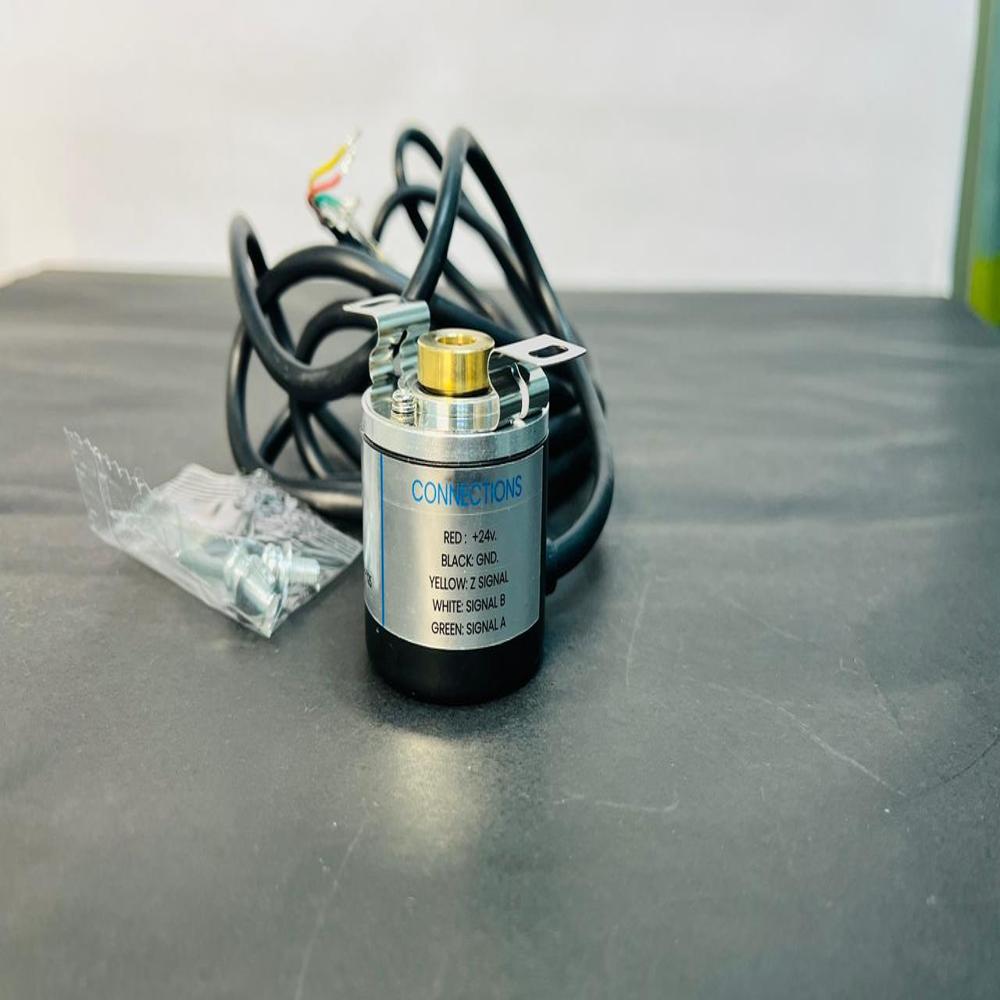

Signal Channels	A, B (Index Z model dependent)
Operating Temperature	-10C to +70C
Connector Type	Cable output / industrial connector
Protection Rating	IP65
Application Areas	CNC, Printing, Conveyors, Robotics, Automation
Key Characteristics	High Accuracy, Stable Output, Durable Design

Robust Build with Coated Metal Finish

Designed with a coated metal exterior, the Tresu Shaft Encoder delivers enhanced resistance to corrosion and external impacts. The cylindrical, compact body is constructed to endure rigorous industrial use without compromising on accuracy or longevity. This durable finish makes the encoder a reliable solution for demanding operational conditions.

Reliable Operation and Protection

Operating at 50-60 Hertz and powered by a single phase, this shaft encoder incorporates an IP65 ingress protection rating, ensuring it is dust tight and protected against water jets. Despite its compact weight of just 200 grams, it provides stable, error-free performance even in environments requiring robust component protection.

FAQ's of Tresu- Shaft Encoder:

Q: How does the Tresu Shaft Encoder ensure reliable performance in industrial settings?

A: The Tresu Shaft Encoder is designed with a coated metal exterior and IP65 protection rating, making it resistant to dust, water jets, and corrosion. Its cylindrical, robust body enables long-term reliable operation, even in harsh industrial environments.

Q: What are the main benefits of using a Tresu Shaft Encoder?

A: Key benefits include its high-quality construction, compact design for easy installation, resistance to environmental factors, and dependable accuracy in rotational measurement. This means less downtime and greater operational efficiency.

Q: When should this shaft encoder be used in machinery?

A: The Tresu Shaft Encoder is ideal for applications requiring precise rotational feedback in environments exposed to dust, moisture, or moderate physical hazards. It is particularly suitable for use in manufacturing and process automation systems.

Q: Where is the Tresu Shaft Encoder manufactured and supplied from?

A: This shaft encoder is manufactured and supplied by a reputable provider in India, ensuring readily available service and support within the region.

Q: What is the process for installing the Tresu Shaft Encoder?

A: Installation involves mounting the cylindrical encoder onto the relevant shaft using the compatible fixing method. Its lightweight, compact design allows straightforward integration into existing equipment with minimal modification.

Q: How do users benefit from the warranty offered with this shaft encoder?

A: The product includes a one-year warranty that covers manufacturing defects, offering users peace of mind and protection against unexpected issues during initial use.

Q: What should I consider when using this encoder regarding overheating protection?

A: The Tresu Shaft Encoder does not have built-in overheating protection. Users should operate the device within recommended temperature limits and ensure adequate system ventilation to prevent excessive heat exposure.
