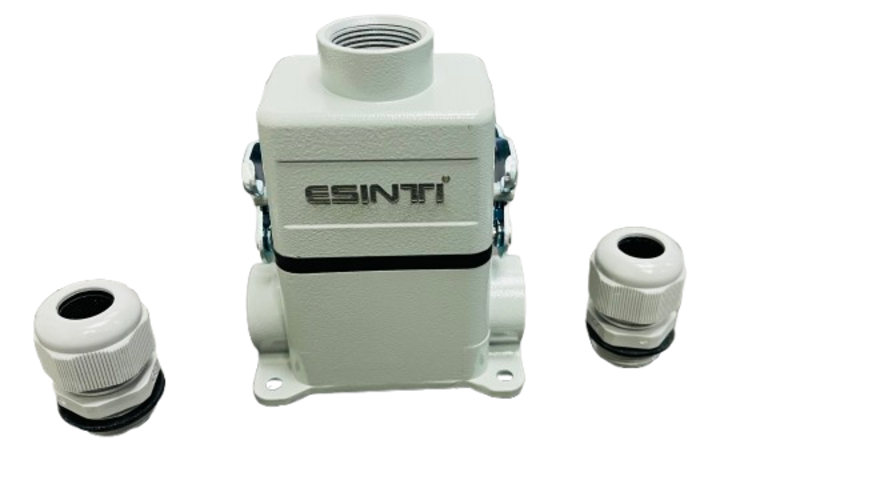

Send InquiryEsinti 6 Pin Heavy Duty Connector Bottom Close, Top Entry
Price 834.0 INR/ Unit
MOQ : 1 Unit
Esinti 6 Pin Heavy Duty Connector Bottom Close, Top Entry Specification
- IP Rating
- IP67
- Mounting Type
- Top Mounting
- Surface Finish
- Smooth, durable, Protects from rust and scratches
- Operating Temperature
- 40 C to +125 C Celsius (oC)
- Feature
- Durable heavy-duty design with top cable entry, dust-protected bottom-close housing, and secure 6-pin electrical connection suitable for industrial environments.
- Shape
- Rectangular
- Connector Type
- Heavy Duty Connector 6-Pin Male/Female Connector (Top Entry Hood, Bottom Close Base)
- Product Type
- Heavy-Duty Rectangular Connector Surface/Panel Mount Housing
- Application
- Used in printing, packaging, automation panels, conveyors, CNC machines, and other heavy-duty equipment.
- Protection Level
- IP67
- Frequency (MHz)
- 50 Hertz (HZ)
- Color
- Grey
- Dimension (L*W*H)
- 14*10*8 Centimeter (cm)
- Usage & Applications
- Used for secure power and signal connections in industrial machines, this connector is ideal for printing and packaging equipment, automation panels, conveyors, CNC machines, and other heavy-duty industrial applications.
- Rated Voltage
- 16 Ampere (A)
- Weight
- 500 Grams (g)
- Warranty
- Phase
- Connection Type
- 6-pin power and signal connection with reliable male female insert locking.
- Material
- High-strength polyamide/metal housing with corrosion-resistant surface finish.
Esinti 6 Pin Heavy Duty Connector Bottom Close, Top Entry Trade Information
- Minimum Order Quantity
- 1 Unit
- Delivery Time
- 7 Days
About Esinti 6 Pin Heavy Duty Connector Bottom Close, Top Entry
Technical Specification
| Parameter | Specification |
| Product Type | Heavy-Duty Rectangular Connector Surface/Panel Mount Housing |
| Number of Contacts | 6 Pin (Insert required: 6-pin male/female) |
| Current Rating | 16 A (typical industrial rating) |
| Voltage Rating | 500 V AC (max) |
| Housing Material | Die-cast Aluminum Alloy, Powder-Coated |
| Ingress Protection (IP Rating) | IP65IP67 (when fully mated with hood + gasket) |
| Cable Entry Type | Top Entry (for glands or conduit) |
| Thread / Entry Size | M20 (standard for cable glands as shown in image) |
| Compatible Cable Glands | M20 Nylon/Metal Glands (612 mm cable OD supported) |
| Locking Mechanism | Dual Stainless Steel Lever Locks |
| Mounting Type | Surface / Panel Mount with 2fixing holes |
| Operating Temperature | 40C to +125C |
| Contact Termination Type | Screw Terminal / Crimp (depends on insert used) |
| Insulation Resistance | 10 M |
| Dielectric Strength | 2.5 kV AC |
| Mechanical Durability | 500 mating cycles |
| Flammability Rating | UL 94 V-0 (typically for inserts) |
| Application | Industrial machinery, automation, conveyors, power distribution, control panels |
