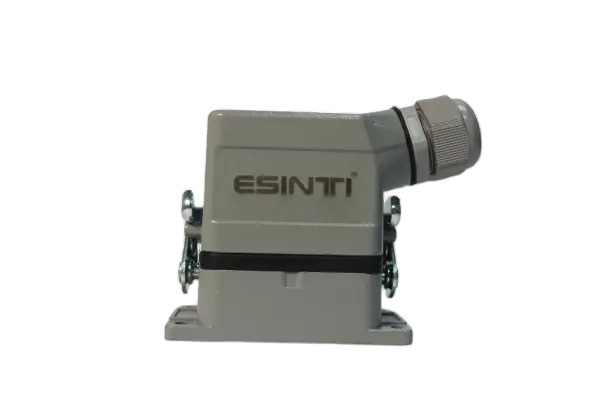

Esinti Hood Heavy Duty Connector Bottom Open

Name: Esinti Hood Heavy Duty Connector Bottom Open
Brand: ESINTI PRIVATE LIMITED
Price: 2528.99 INR
Availability: InStock

Price 2528.99 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Esinti Hood Heavy Duty Connector Bottom Open Specification

Surface Finish
Smooth

Application
Industrial

Color
Grey

Warranty
Yes

Operating Temperature
As per industry Celsius (oC)

Size
Various

Material
Copper Alloy

Esinti Hood Heavy Duty Connector Bottom Open Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Esinti Hood Heavy Duty Connector Bottom Open

Technical Specifications=

Parameter	4-Pin Connector	6-Pin Connector	7-Pin Connector	10-Pin Connector	16-Pin Connector	24-Pin Connector	32-Pin Connector	48-Pin Connector
Number of Pins	4 + PE (Protective Earth)	6 + PE	7 + PE	10 + PE	16 + PE	24 (configurable as 2x12 rows)	32 + PE	48 (configurable as 3x16 or 4x12 rows)
Rated Current	2540 A (depending on contact size)	1640 A	2032 A	1625 A	16 A	16 A	1016 A	10 A
Rated Voltage	500690 V AC	500690 V AC	500 V AC	500 V AC	500 V AC	2501000 V (300600 V typical)	250500 V	250500 V
Rated Impulse Voltage	68 kV	68 kV	6 kV	6 kV	6 kV	Up to 6 kV	46 kV	46 kV
Pin Material	Copper Alloy (Silver/Gold Plated)	Copper Alloy (Silver/Gold Plated)	Copper Alloy (Silver Plated)	Copper Alloy (Silver Plated)	Copper (Silver/Gold Plated)	Copper Alloy (Gold/Tin Plated)	Copper Alloy (Tin Plated)	Copper Alloy (Tin/Gold Plated)
Contact Resistance	1 m	1 m	1 m	1 m	1 m	< 10 m	< 10 m	< 10 m
Wiring Form	Screw/Crimp	Screw/Crimp	Screw/Crimp	Screw/Crimp	Screw Connection	Crimp or Solder	Crimp or Screw	Crimp or Solder
Wire Specification	1.010.0 mm	1.06.0 mm	1.06.0 mm	0.754.0 mm	0.54.0 mm	0.52.5 mm	0.52.5 mm	0.252.5 mm
Tightening Torque	0.60.9 Nm	0.50.8 Nm	0.50.8 Nm	0.50.6 Nm	0.5 Nm	0.50.6 Nm	0.40.5 Nm	0.40.5 Nm
Mating Cycles	500	500	500	500	500	5001000	5001000	5001000
Operating Temperature	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C	-40C to +125C
Shell Material	Die-Cast Aluminum Alloy / Zinc Alloy	Die-Cast Aluminum Alloy / Zinc Alloy	Aluminum Alloy / Thermoplastic	Aluminum Alloy / Thermoplastic	Die-Cast Aluminum Alloy	Nylon, Zinc Alloy, or Thermoplastic	Thermoplastic / Zinc Alloy	Thermoplastic Reinforced / Zinc Alloy
Protection Grade (IP)	IP65/IP67	IP65/IP67	IP65	IP65	IP65 (Dust-tight, water-resistant)	IP67/IP68 (Dust/waterproof)	IP67	IP67/IP68
Sealing Element	NBR (Nitrile Rubber) or Silicone	NBR (Nitrile Rubber) or Silicone	Silicone/NBR	Silicone/NBR	NBR (Nitrile Rubber)	Silicone Rubber Gasket	Silicone Rubber	Silicone Rubber
Locking Mechanism	Double Latch / Screw Lock	Double Latch / Screw Lock	Double Latch / Screw Lock	Double Latch / Screw Lock	Metal Roller, Double Buckle	Twist Lock, Bayonet, or Threaded Coupling	Bayonet / Latch Lock	Bayonet / Threaded / Latch Lock
Salt Spray Resistance	4872 hours	4872 hours	48 hours	48 hours	48 hours	48 hours	48 hours	48 hours
Humidity Resistance	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C	90% RH at 40C
Mounting Style	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable	Panel Mount/Inline/Cable-to-Cable

Durable Construction for Industrial Demands

Constructed with a high-grade copper alloy, the Esinti Hood Heavy Duty Connector is built to withstand the rigors of industrial environments. Its bottom-open design facilitates easy installation and maintenance by technicians, while the smooth finish enhances resistance to corrosion and external elements. Rigorously tested for quality, this connector is suitable for a variety of industrial machinery and systems.

Versatile Range of Sizes and Applications

Available in multiple sizes, the Esinti Hood Heavy Duty Connector adapts to diverse industrial setups. Whether for electrical panels, automation systems, or control circuits, its adaptability ensures seamless integration. The grey surface finish not only gives it a refined appearance but also aligns with modern industrial aesthetics.

FAQs of Esinti Hood Heavy Duty Connector Bottom Open:

Q: How is the Esinti Hood Heavy Duty Connector typically installed?

A: The connector is designed with a bottom-open configuration, allowing technicians to easily route and secure wires during installation. It can be mounted onto panels or enclosures according to industrial requirements.

Q: What materials are used in the construction of this connector?

A: This heavy-duty connector is manufactured from high-quality copper alloy, providing excellent conductivity and durability for long-term industrial use.

Q: When is it recommended to use this connector in industrial settings?

A: The connector is suitable for use whenever secure, reliable connections are required in machinery, control systems, or electrical distribution in industrial environments.

Q: Where can I purchase the Esinti Hood Heavy Duty Connector in India?

A: You can obtain this connector directly from Esinti or authorized industrial supply distributors throughout India.

Q: What is the process for claiming warranty on this product?

A: To claim warranty, contact the supplier or manufacturer with your purchase details and product information. They will guide you through the warranty claim process as per their guidelines.

Q: How does the connectors surface finish and color provide benefits?

A: The smooth surface finish enhances corrosion resistance and simplifies cleaning, while the neutral grey color maintains a professional look suitable for industrial settings.

Q: What are the main advantages of using a copper alloy in this connector?

A: Copper alloy offers high electrical conductivity, strength, and resistance to wear, making it ideal for rigorous and high-performance industrial applications.
